Medieval Arm Guard Leather Pattern: PDF & DXF Template (Digital Download)

Please read carefully the description!

This is a DXF (laser cutting) and PDF (A4 and USLETTER) pattern for download. This is NOT the finished product.
All our files are our own and therefore our intellectual property. Reselling, altering files, giving others away for free is a violation of the intellectual property law. Violation of this rule will be reported.

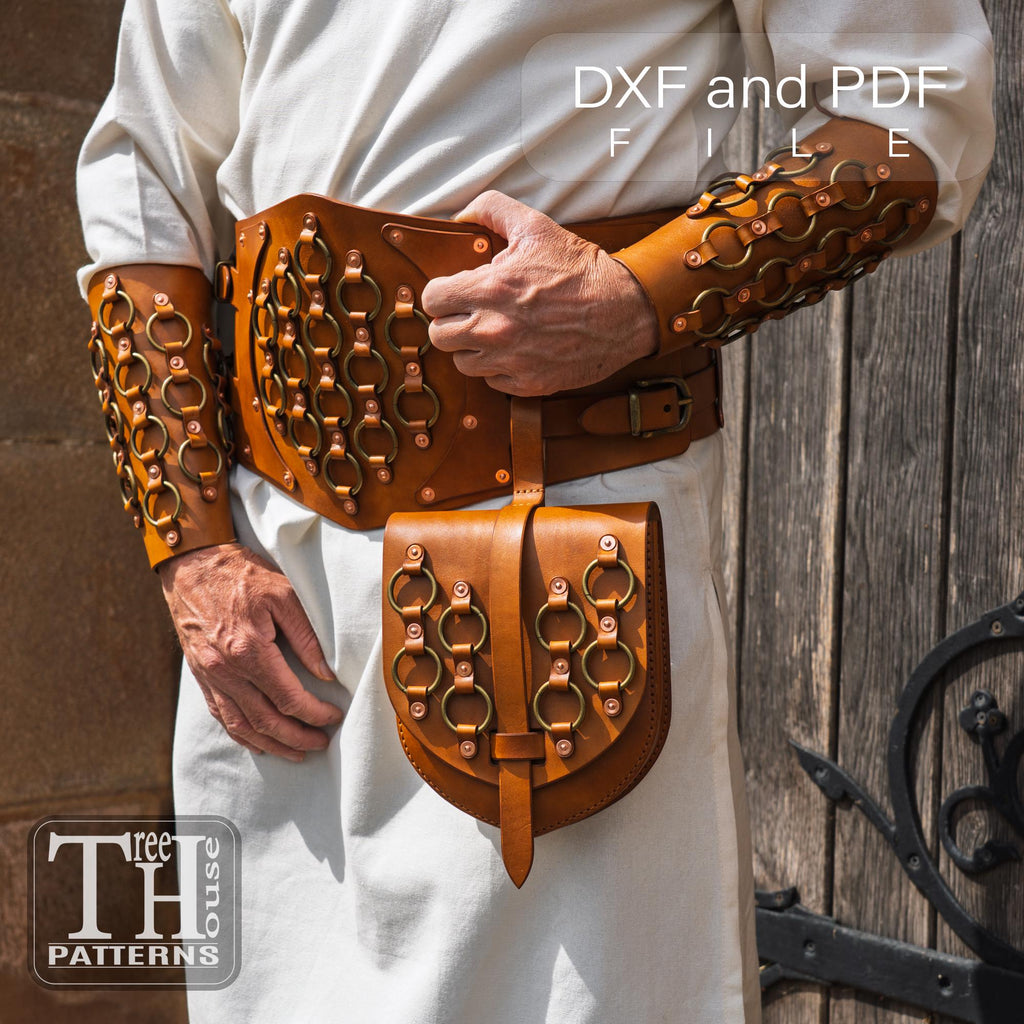

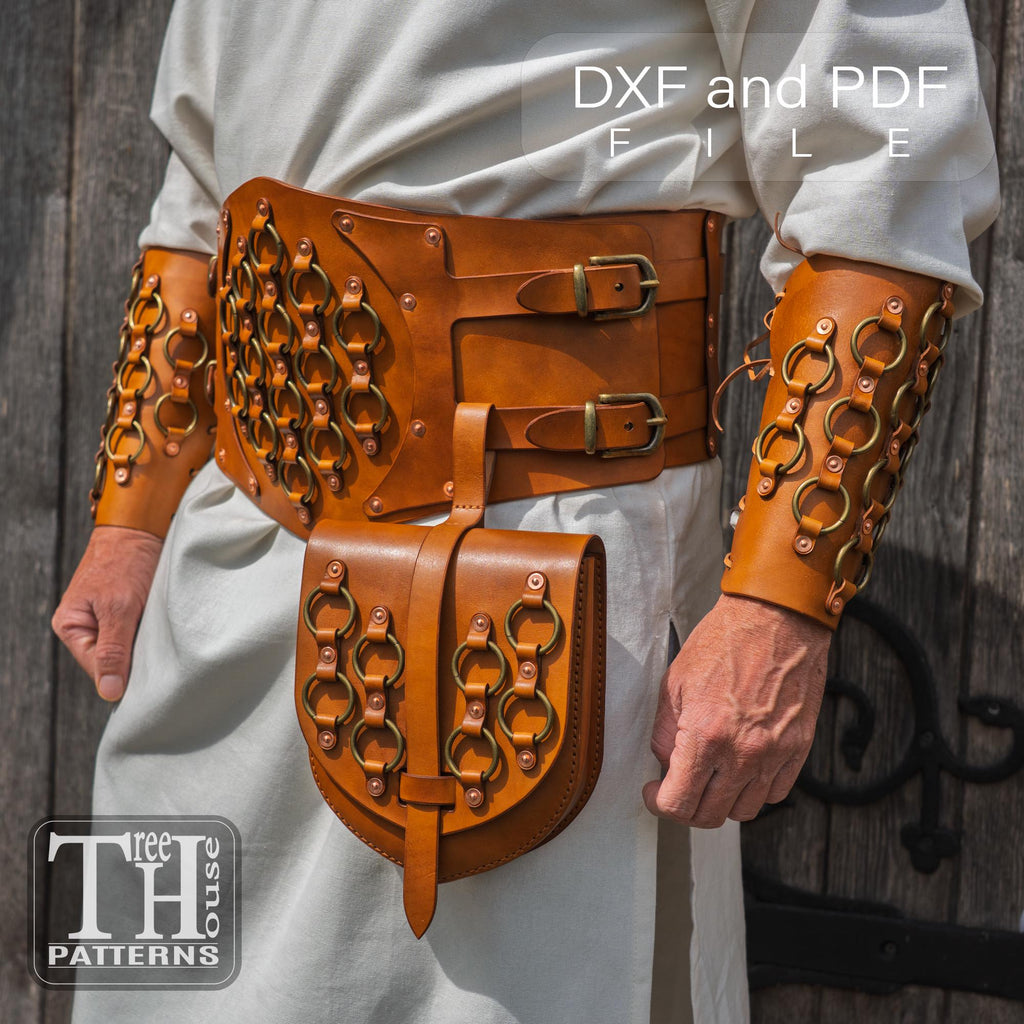

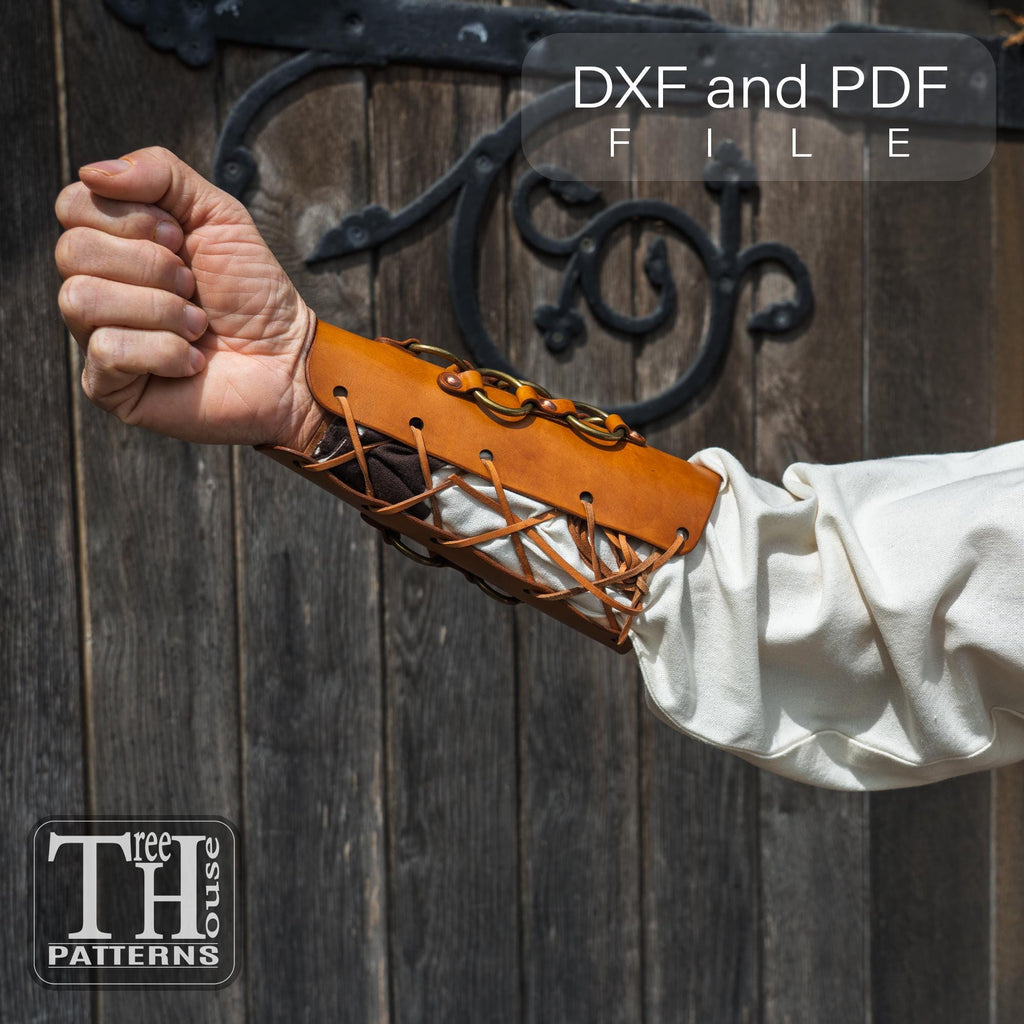

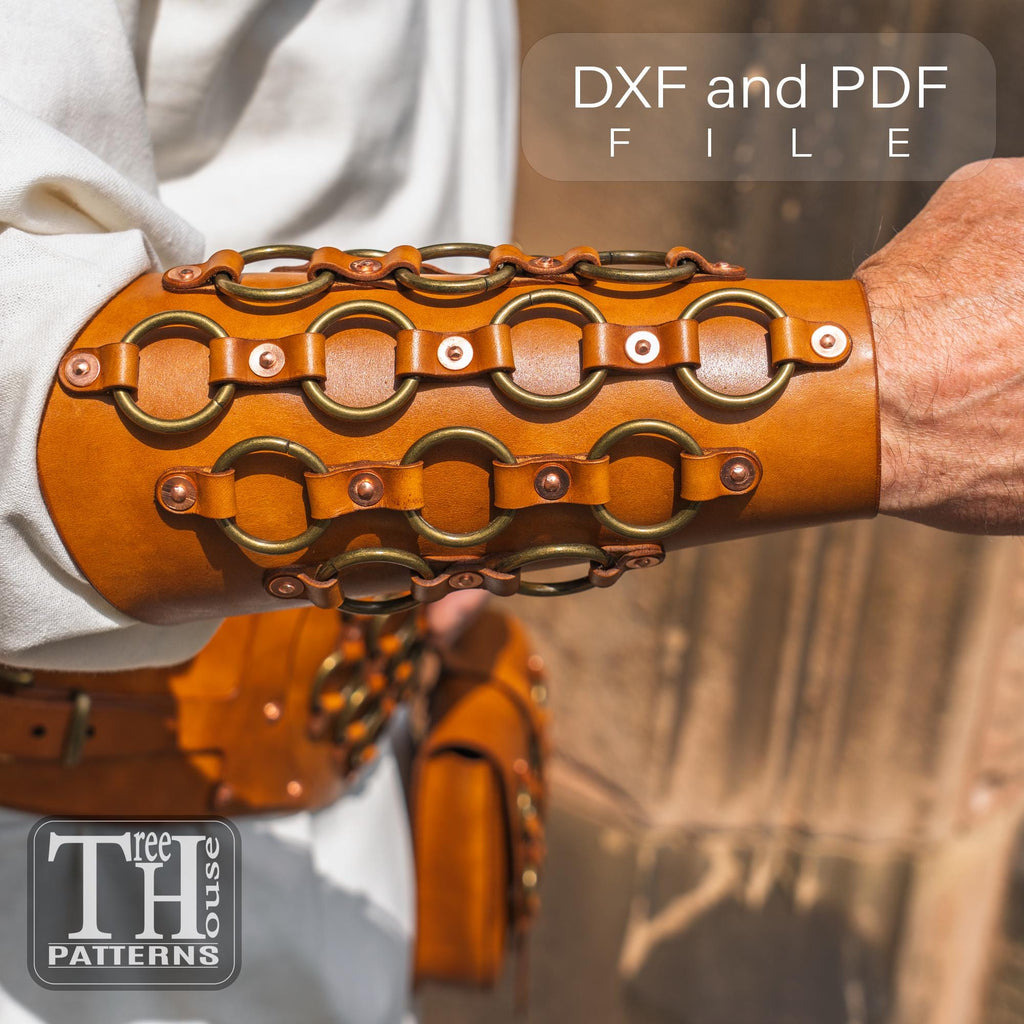

Leather pattern PDF (A4 and US LETTER) and DXF for laser cutting for medieval style arm guard. There is 5 different sizes available.
Sizes:
230mm x 220mm / 9.05'' x 8.66''
250mm x 220mm / 9.84'' x 8.66''
270mm x 230mm / 10.62'' x 9.05''
290mm x 250mm / 11.41'' x 9.84''
310mm x 290mm / 12.20'' x 11.41''

Link to video tutorial:
There is no separate tutorial for the arm guard, but the O-ring mounting that is there can be seen in this tutorial:
https://www.youtube.com/watch?v=L3WyR4OLjF0&ab_channel=TreehousePatterns

- The PDF file contains REAL SIZE PATTERNS for every piece required to complete the design.
- Print 100% size
- Easy to follow
- Pattern is designed for hand stitching

I recommend using natural leather with thickness of 4-5 Oz. ( 1.8- 2.0 mm) and 4 Oz. (1.4 -1.6) for the best results.

The tools required are:
- a regular cutter,
- a hole puncher,
- edge beveller
- two needles
- hammer

Due to the possible minimum differences in the distance between the holes, we recommend using single hole punch (PDF file).

HARDWARE (for one piece):
- leather cord
- 19-30 rivets (9mm)
- 14-23 O-ring (32mm)

Measurement of the leather You will need to finish this project (1 arm guard):
Leather 1.8 - 2.0mm (4-5 Oz): 32 cm x 30 cm / 12.59'' x 11.81''
Leather 1.4 - 1.6mm (4 Oz): 30 cm x 17 cm / 11.81'' x 6.69''
